Beyond Movement:
A Deep Dive into
PTZ Intelligence
DEEP DIVE: PTZ CAMERAS
When Movement Becomes Intelligence
Most people think of PTZ cameras as “the ones that move.” But SharpCam PTZ cameras go far beyond simple rotation. They are dynamic optical machines powered by high-speed motors, precision-engineered lenses, long-range infrared illumination, and an AI engine that turns movement into real-time intelligence. They can:
Cover the work of multiple fixed cameras
Zoom into distant details with zero pixelation
Track people and vehicles automatically
Respond to alerts from other cameras
Maintain situational awareness across massive sites
This guide breaks down the technology behind PTZ cameras in a way that’s clear, practical, and directly useful, so you understand why these devices are game-changing and how they elevate modern security.
DEEP DIVE: PTZ CAMERAS
The Power of Movement:
Pan, Tilt, Zoom
1
A PTZ camera gets its name from three mechanical capabilities that define how it behaves in the real world. Together, these movements allow one camera to actively monitor wide areas, respond to live events, and adapt its view in seconds.
Pan: Horizontal Rotation
The camera swings left and right, often up to a full 360°, with speeds reaching 200° per second on advanced models. This allows a single PTZ to scan large yards, parking areas, or perimeters, and to instantly redirect its focus when an alert is triggered elsewhere in the system.
Tilt: Vertical Movement
Tilt enables the PTZ to look up and down, adding vertical awareness to its coverage. Modern SharpCam PTZs support auto-flip tilt, allowing the camera to rotate 180° and continue tracking a subject that passes directly underneath, without losing the target or displaying an inverted image.
Zoom: Optical Magnification
Zoom is where PTZ cameras truly separate themselves from fixed cameras. Optical zoom physically adjusts the lens, preserving image clarity at long distances. Higher zoom factors allow operators to read license plates, identify faces, and analyze behavior.
Exploring the Distance:
Optical Zoom
2
DEEP DIVE: PTZ CAMERAS
Optical zoom works like built-in binoculars. You don’t lose pixels, you don’t introduce blur, and you don’t end up with soft or degraded footage. Instead, higher zoom power delivers:
Evidence-grade detail at long distances
Continuous tracking across large open spaces
Fewer cameras required to cover wide sites
| Zoom Power & Example Model | Use Case | Practical Benefit |
|---|---|---|
|
Low Zoom (4×) SS-RIP04x4U |
Indoor halls, receptions, small courtyards | Delivers a crisp overview of wide areas with enough zoom to reframe the scene or focus on activity, without the complexity or cost of long-range optics. |
|
High Zoom (33×) SS-RIP05x33U |
Industrial perimeters, container terminals, critical infrastructure | Allows operators to identify people, vehicles, and fine details from hundreds of meters away, enabling large open spaces to be monitored effectively from a single PTZ position. |
Seeing in the Dark: Infrared (IR)
Range Explained
Infrared (IR) acts as a camera’s invisible night light — unseen by humans, but fully visible to the sensor. The IR range defines how far a PTZ can illuminate and capture usable video in complete darkness. Different SharpCam PTZ models offer different IR strengths depending on their intended use:
3
DEEP DIVE: PTZ CAMERAS

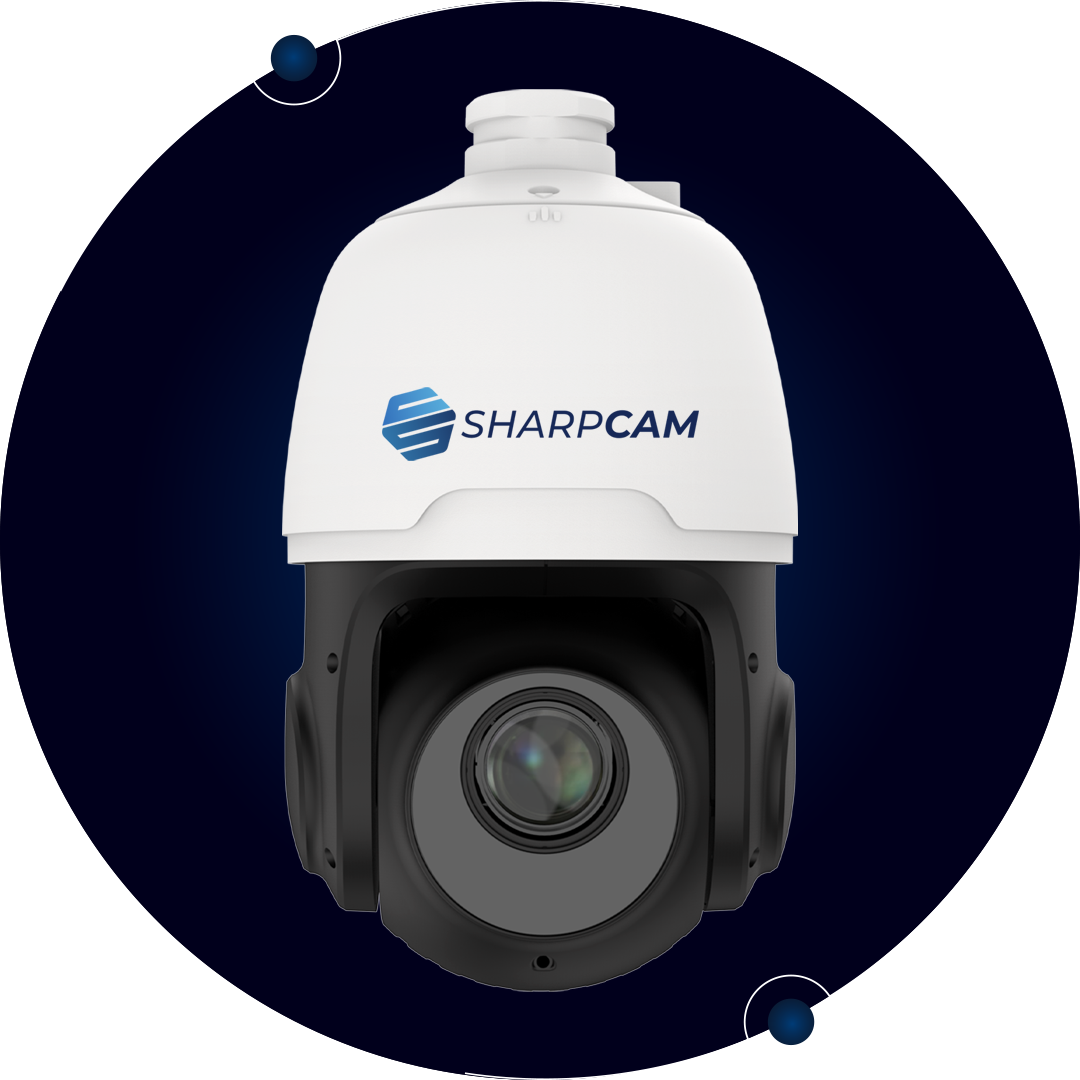

Standard IR (~100 m)
Ideal for office buildings, courtyards, parking lots, and small factories. Provides clear nighttime visibility for entrances, walkways, and medium-sized perimeters.
SS-RIP02x18U
PTZ Series

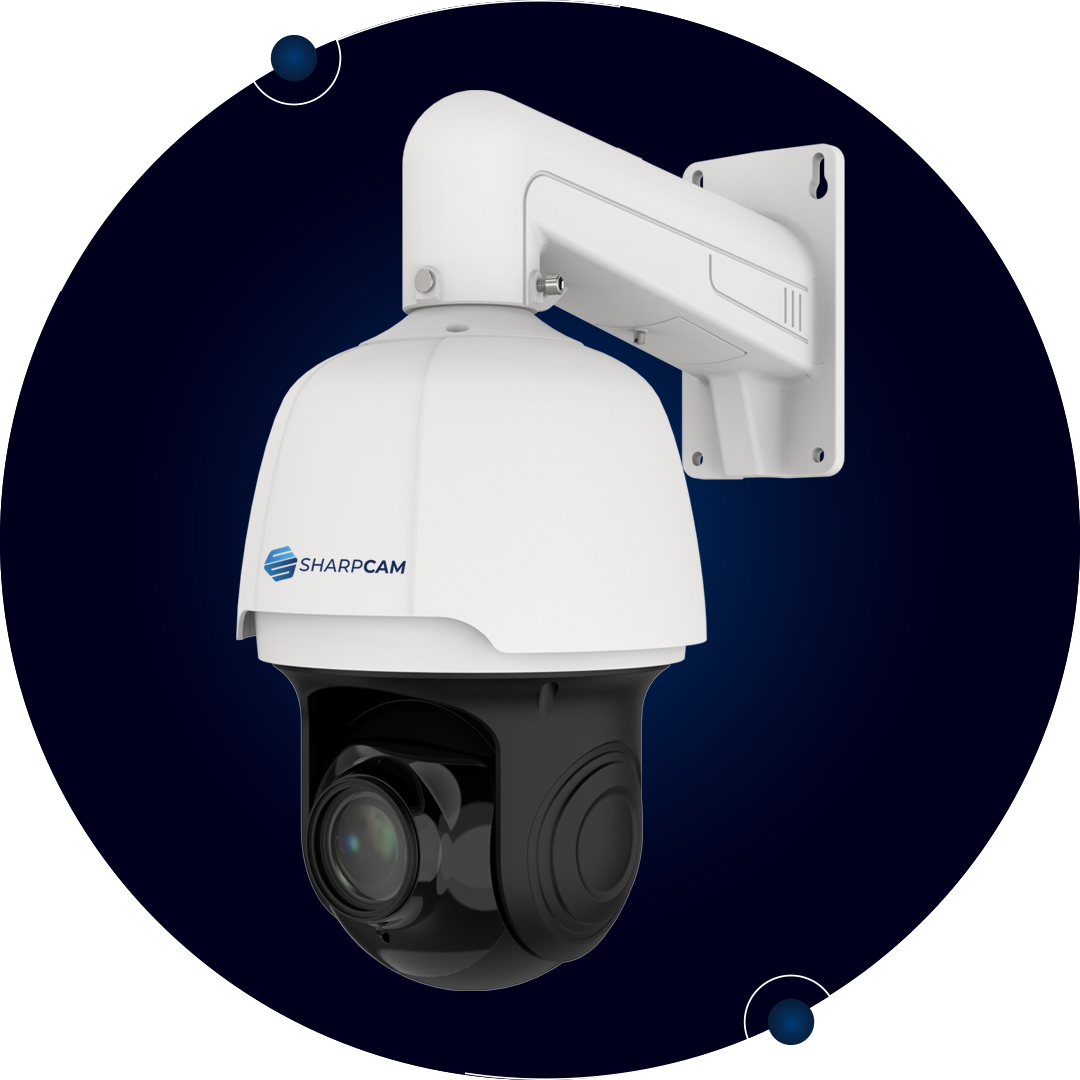

Extended IR (~150 m)
Designed for industrial sites and long fence lines. Excellent for warehouses, logistics parks, and container yards where visibility must extend deeper into open space.
SS-RIP05x33U
PTZ Series

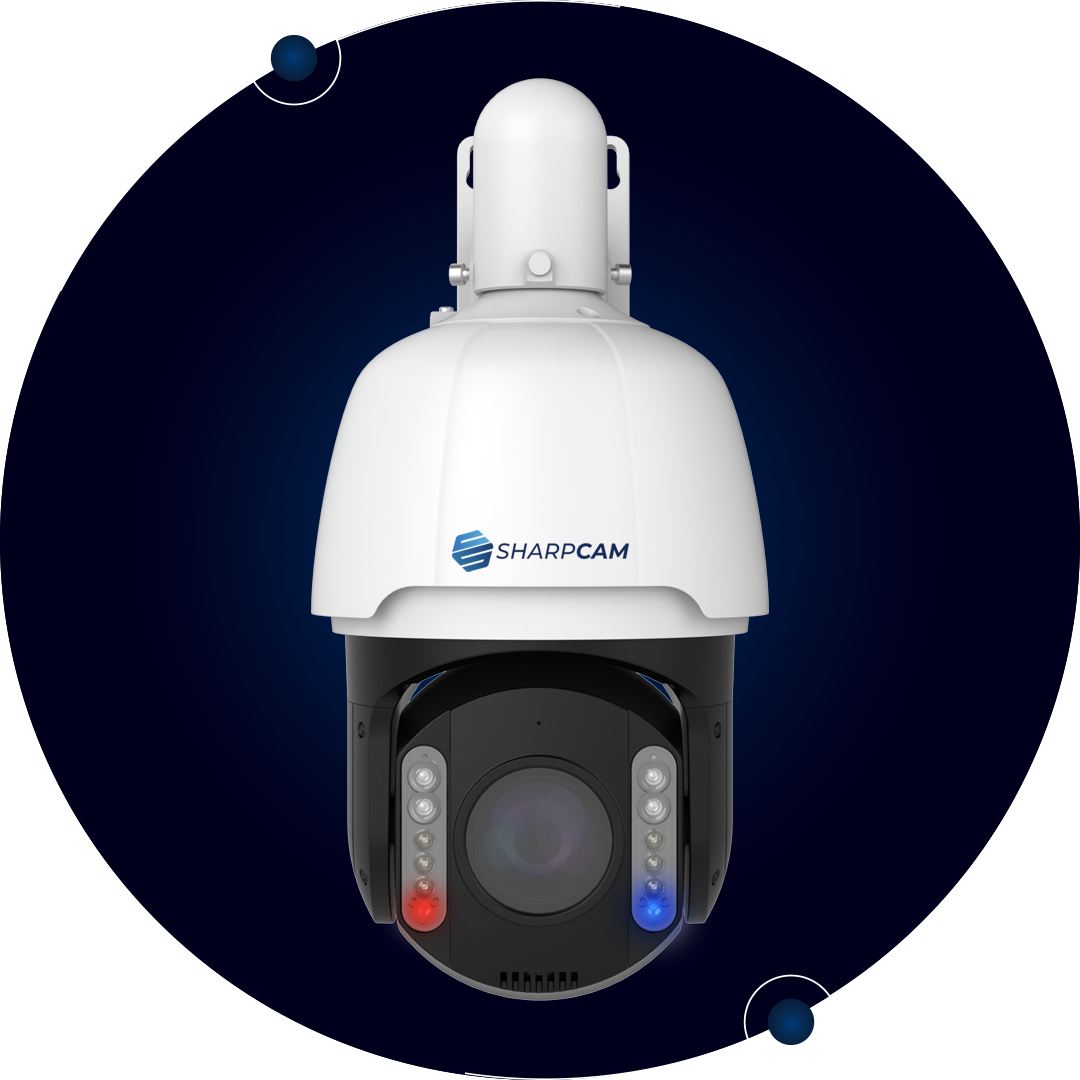

Ultra-Long IR (~200 m)
Built for mission-critical environments such as airports, ports, and city surveillance. Strategic placement allows a few PTZs to confidently monitor vast dark areas.
SS-RIP08x37U
PTZ Series
Situational IR (~30 m)
High-resolution 4K PTZ cameras optimized for well-lit environments like malls, terminals, and plazas. Here, clarity and overview matter more than long-range night illumination.

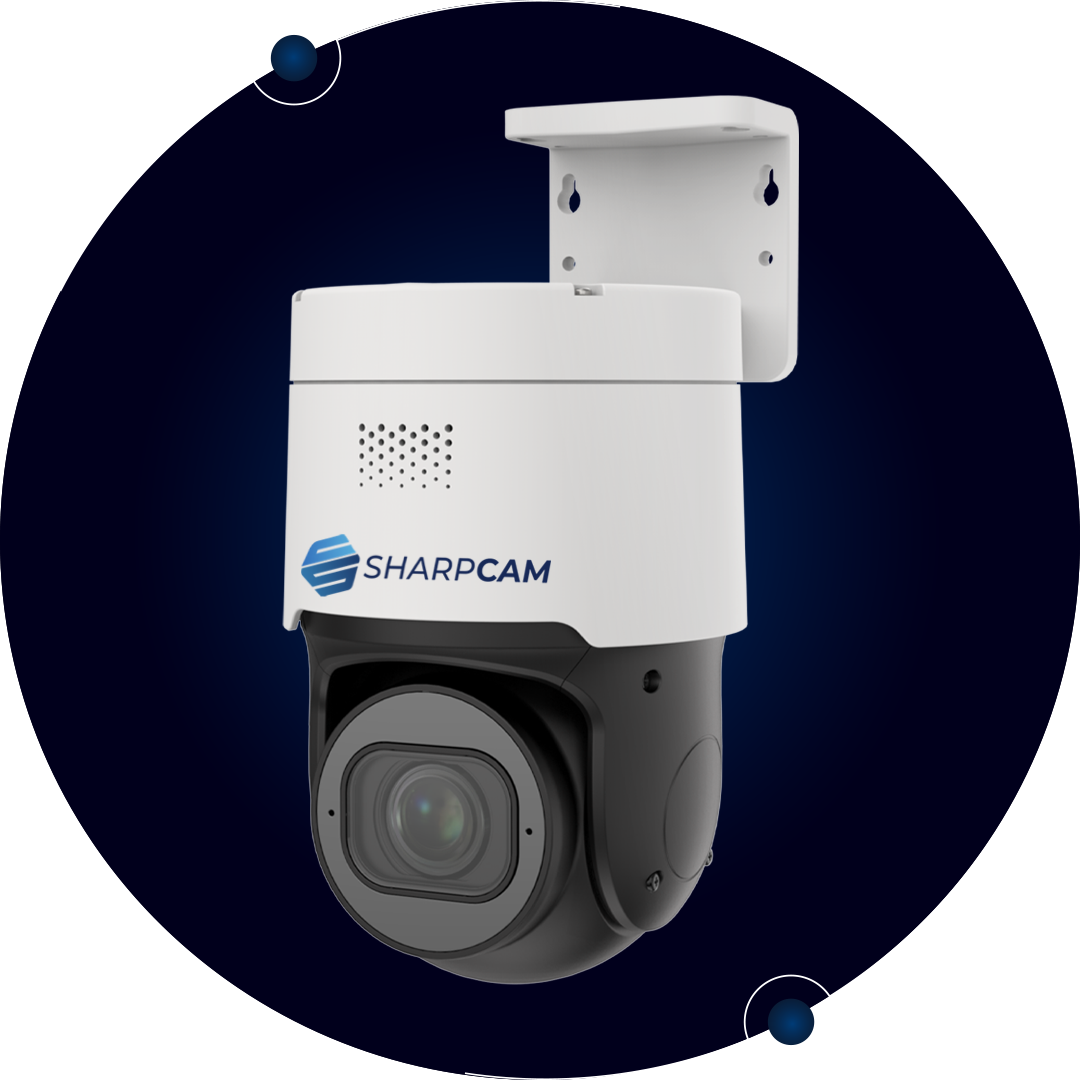

SS-RIP08x4D
PTZ Series
Visual Precision: Understanding Resolution
4
DEEP DIVE: PTZ CAMERAS
Resolution defines how much detail a camera can capture and preserve. Higher megapixel counts translate directly into sharper images and more usable footage. Resolution becomes especially powerful when combined with optical zoom and PTZ movement, allowing operators to zoom digitally after recording without sacrificing clarity. In practice, higher resolution means:
Finer facial and object detail
Stronger identification and recognition
Cleaner zoom during playback
Higher-quality, court-ready evidence
| Resolution | Example Model | Practical Benefit |
|---|---|---|
| 2MP (1920×1080) | SS-RIP02x18U | Full HD clarity for general security monitoring. Ideal for workshops, clinics, entrances, and small-to-medium areas where detailed but lightweight video files are preferred. |
| 8MP / 4K (3840×2160) | SS-RIP08x4D | Ultra-high-definition master view. Perfect for large open spaces like halls, plazas, or terminals where operators can zoom into recorded footage to inspect fine details. |
The “Brain”:
Smart Features with On-Board AI
5
DEEP DIVE: PTZ CAMERAS
SharpCam PTZ cameras are not just remotely controlled eyes — they are intelligent agents that analyze scenes, detect events, and respond automatically. Their AI capabilities fall into three core categories:
Category 1:
Smarter Security
What It Does?: Trains the camera to distinguish real targets from environmental noise like rain, shadows, trees, insects, or lighting changes.
Why It Matters?:
Fewer false alarms
Cleaner dashboards
Higher operator confidence
Seamless automation across systems
EXAMPLES:
Human & Vehicle Detection, Perimeter Intrusion Detection
Category 2:
Automatic Identification
What It Does?: Identifies people or vehicles by matching them against stored profiles such as employees, VIPs, or blacklists.
Why It Matters?:
Automatic gate control
Intelligent access management
Instant alerts for flagged identities
Direct integration with attendance and visitor systems
EXAMPLES:
Face Recognition, License Plate Recognition
Category 3:
Business & Operational Insights
What It Does?: Transforms the PTZ into an operational sensor by analyzing how people move, gather, and wait over time.
Why It Matters?:
Optimize layouts and staffing
Manage queues proactively
Improve service quality
Enhance operational flow
EXAMPLES:
Heat Map, Crowd Density Detection, Queue Length Detection
Conclusion:
A High-Value System
6
DEEP DIVE: PTZ CAMERAS
A modern PTZ camera is much more than a camera that moves. It’s a fusion of:
Movement: Pan + Tilt
Optical Power: Long-Range Zoom
Night Vision: Precision IR
Clarity: High Resolution
Intelligence: On-Board AI
Choosing the right PTZ becomes easy once you understand what truly matters. A well-selected PTZ doesn’t just “watch.” It protects, analyzes, reacts, and empowers — becoming a genuinely strategic asset for any site, from small businesses to industrial zones to full city-scale surveillance grids.
